In order for you to make the most of a growing market and to bring you more productivity, Valeo has developed a comprehensive and competitive offer of Diagnostic Equipment ranging from the ClimFill Air Conditioning Service Station to the Valeo exclusive FastFill system that allows speedy and performance refrigerant liquid change.
Key Features
- Full Automatic Machines.
- ClimFill lock: eco-patented couplers to improve the recovery time cycle.
- Increased operational tank capacity given a higher maximum operating pressure.
- S-Mode &Q-Mode to ensure the A/C loop charging in all conditions
- Electric compressor compatibility for hybrid &electric vehicles
- Pump Monitoring System (PMS) for a higher performance and durability
- Oil care valve protecting the oil from air moisture
- Customer traceability: records of all maintenance operations per vehicle
Choose Your Machine
The ClimFill® Easy refill station gathers several key advantages for workshops. It automatically manages all operations on the A/C system including recovery, recycling, injection and weighing of the refrigerant and oil. Light and compact, this station can also be easily operated at the working area.
Features & Specs
- Refrigerant – R134a
- Refrigerant recycling – With electronic scales
- Automatic refrigerant recovery & injection
- Automatic oil weighing, recovery & injection
- Manual operating mode
- Automatic hose compensation
- Programmable vacuum
- Vacuum leak detection

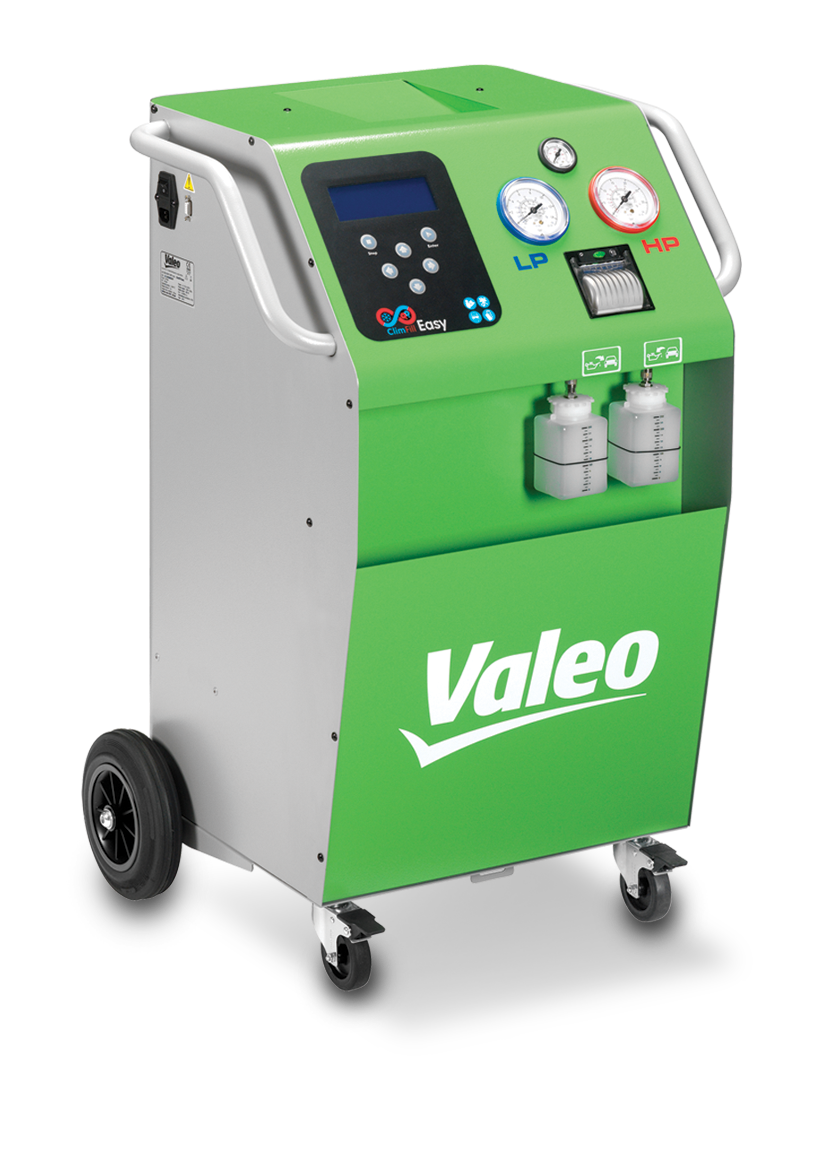

The ClimFill® Easy HFO has an important operational tank capacity (6.3kg). It features the ClimFill* Lock coupler that avoids refigerant gases to be released in the atmosphere when decoupling making the Station and eco responsible money saver. His scale by the gram, is another element that will give the possibility to save the HFO fluid.
Features & Specs
- Refrigerant – HFO 1234yf
- Refrigerant recycling – With electronic scales
- Automatic refrigerant recovery & injection
- Automatic oil weighing, recovery & injection
- Manual operating mode
- Automatic hose compensation
- Programmable vacuum
- Vacuum leak detection

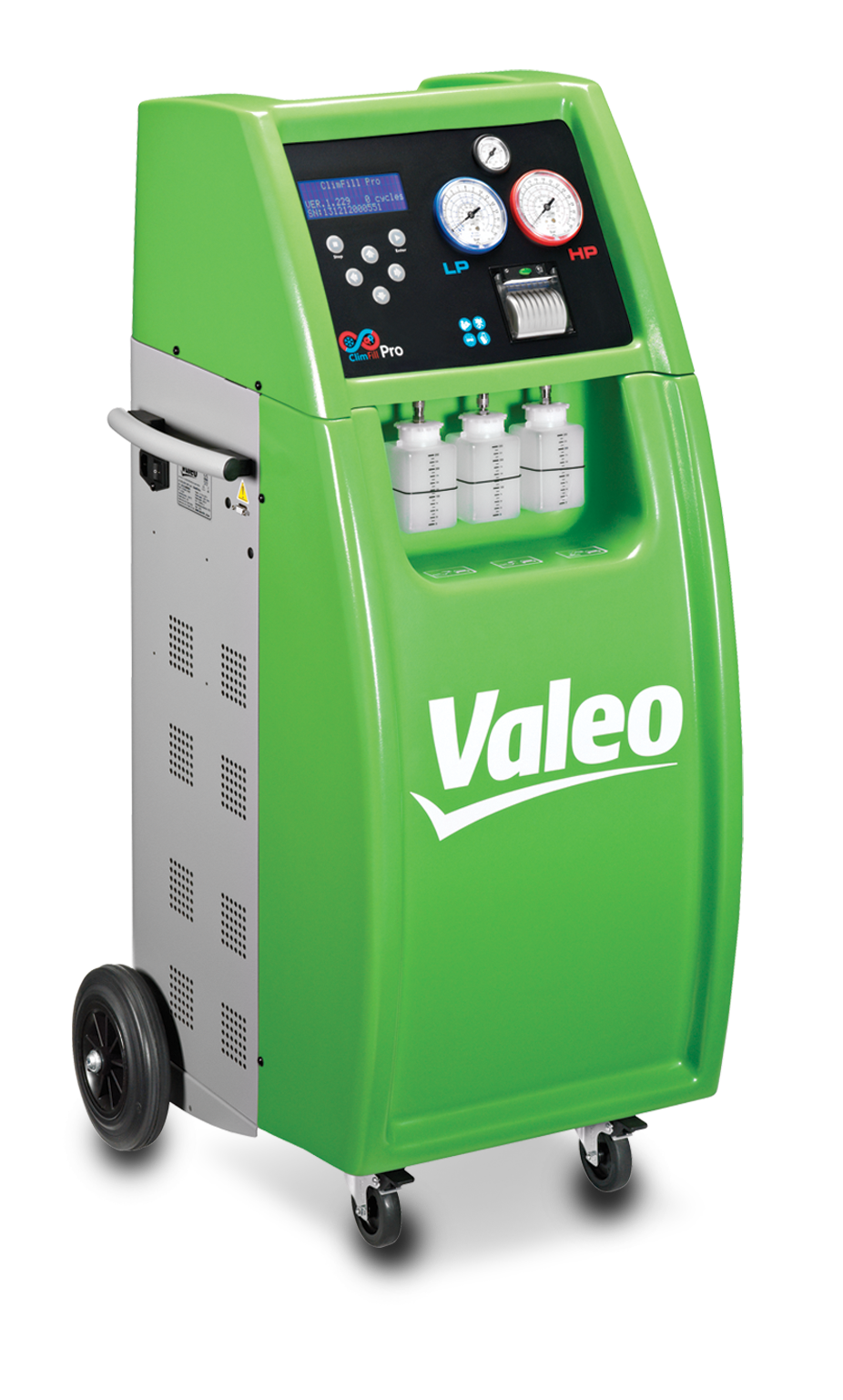

The ClimFill® Pro displays outstanding and long-lasting charging performances. The ClimFill® Pro also benefits from its eco- patented couplers preventing any loss of refrigerant and air from entering the station tank. Additionally, this station can be converted to the new refrigerant HFO 1234yf using a conversion kit (Ref 710217).
Features & Specs
- Refrigerant – R134a – convertible HFO 1234yf
- Refrigerant recycling
- Automatic refrigerant recovery & injection
- Automatic oil weigfiing, recovery & injection
- Automative UV dye injection
- Manual operating mode
- Automatic hose compensation
- Programmable vacuum
- Vacuum leak detection
- ClimFill® Lock
The ClimFill® Pro HFO offers similar features to the regular ClimFill® Pro however it is only used for the new refrigerant HFO 1234yr.
Features & Specs
- Refrigerant – HFO 1234yf only
- Refrigerant recycling
- Automatic refrigerant recovery & injection
- Automatic oil weighting, recovery & injection
- Manual operating mode
- Automatic hose compensation
- Programmable vacuum
- Vacuum leak detection
- ClimFill® Lock

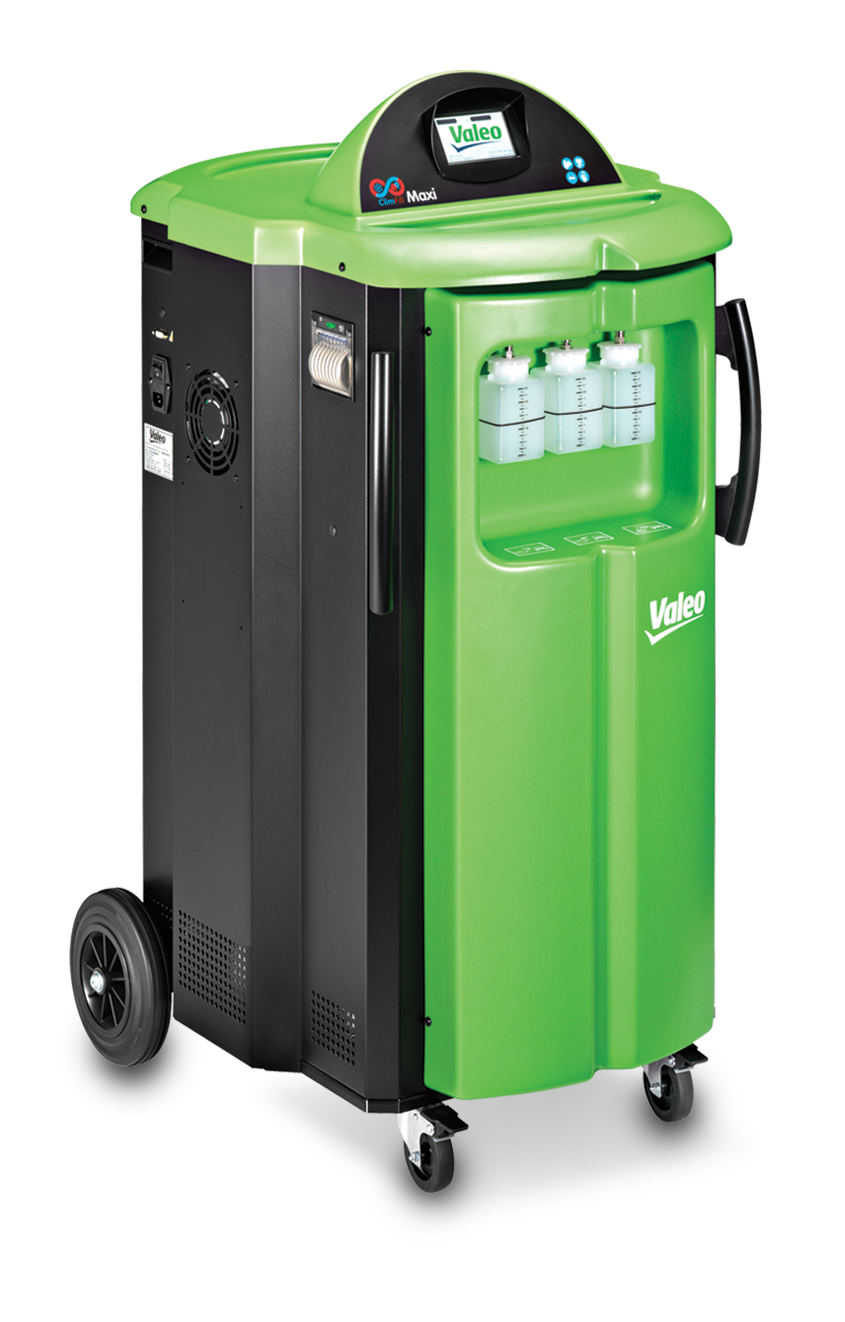

The ClimFill® Maxi refill station Is an adapted solution to effectively operate on larger A/C systems In Trucks & Buses. It offers a Supercharge mode to guarantee a top-guality intervention on such A/C circuits. The ClimFill® Maxi also features the eco-patented couplers and a LCD touch screen.
Features & Specs
- Refrigerant – R134a
- Refrigerant recycling
- Automatic refrigerant recovery & injection – With Supercharge
- Automatic oil weigfiing, recovery & injection
- Manual operating mode
- Automatic hose compensation
- Supercharge Mode
- Programmable vacuum
- Vacuum leak detection
- Electric compressor compatibility Air purge system – Automatic
- ClimFill® Lock
Envelope icon:
| Functions | ClimFill Easy 625201 |
ClimFill Easy HFO 710297 |
ClimFill Pro 625202 |
ClimFill Pro HFO 625295 |
ClimFill Maxi 710203 |
|---|---|---|---|---|---|
| Refrigerant | R134 a | HFO 1234yf a | R134 a – Convertible HFO 1234yf | HFO 1234yf – Only | R134 a |
| Refrigerant recycling | (with electronic scales) | (with electronic scales) | (with electronic scales) | (with electronic scales) | (with electronic scales) |
| Automatic refrigerant recovery&injection | (with electronic scales) | (with electronic scales) | (with electronic scales) | (with electronic scales) | (with electronic scales) |
| Automatic oil weighing, recovery &injection | (with electronic scales) | (with electronic scales) | (with electronic scales) | (with electronic scales) | (with electronic scales) |
| Automatic UV dye injection | |||||
| Manual operating mode | |||||
| 5-Mode | |||||
| Q-Mode | |||||
| Automatic hose compensation | |||||
| Supercharge mode | |||||
| Refrigerant identifier | Optional | Optional | |||
| Programmable vacuum | |||||
| Vacuum leak detection | |||||
| Nitrogen leak detection | Optional | Optional | Optional | Optional | Optional |
| Electric compressor compatibility | |||||
| Air purge system | Semi-auto | Semi-auto | Semi-auto | Semi-auto | Automatic |
| Tank pressure gauge | |||||
| Tank scale locking system | |||||
| ClimFill® Lock | Optional | ||||
| ClimFill® Solution | Optional | Optional | Optional | Optional | Optional |
| A/Cperformance test | |||||
| Service monitoring system (for maintenance operations of the station) |
|||||
| Unitauto-diagnosis | |||||
| SAE J2843 pre-charge test and procedure | |||||
| Electronic Database | |||||
| Programmable user database | |||||
| Customer database (search engine by vehicle plate) |
|||||
| Printer |
| Functions | ClimFill Easy 710201 |
ClimFill Easy HFO 710297 |
ClimFill Pro 710202 |
ClimFill Pro HFO 710295 |
ClimFill Maxi 710203 |
|---|---|---|---|---|---|
| Vacuum pump (L/min) | 50 | ? | 100 | 100 | 167 |
| Vacuum pump oil replacement interval | With Pump Monitoring System (Upto 1000 hrs)" |
With Pump Monitoring System (Upto 1000 hrs)" |
With Pump Monitoring System (Upto 1000 hrs) |
With Pump Monitoring System (Upto 1000 hrs) |
With Pump Monitoring System (Upto 1000 hrs) |
| Compressor (cc) | 8 | 8 | 14 | 14 | 14 |
| Ventilated condenser | Heavy duty | ||||
| Max operating pressure (bar) | 20 | 20 | 20 | 20 | 20 |
| Tank capacity | 10 kg full – 7 kg operating | 9 kg full – 6.3 kg operating | 18 kg full – 12.5 kg operating | 16.3 kg full – 11.4 kg operating | 32 kg full – 22 kg operating |
| Service hoses length (m) | 3 | 3 | 4.5 | 4.5 | 4.5 |
| Service hoses extensions | Optional (4.5 m) | Optional (4.5 m) | Optional (4.5 m) | Optional (4.5 m) | Optional (4.5 m) |
| Heating belt | |||||
| Tankelectronic scale precision | +/-1 g resolution (+/-10 g displayed) |
+/-1 g resolution (+/-10 g displayed) |
+/-1 g resolution (+/-10 g displayed) |
+/-1 g resolution (+/-10 g displayed) |
+/-1 g resolution (+/-10 g displayed) |
| Oil bottle capacity (mL) | 250 | 250 | 250 | 250 | 250 |
| UV dye bottle (ml) | 250 | 250 | 250 | ||
| Oil care valve | |||||
| USB | |||||
| Display | Matrix LCD Display 260x64 |
Matrix LCD Display 260x64 |
Matrix LCD Display 260x64 |
Matrix LCD Display 260x64 |
4.3" Graphic tactile colour display |
| CE &TUV PED Compliance | |||||
| Dimension (mm) | 620 X 550 X 970 | 620 X 550 X 970 | 605 X580 X1178 | 605 X580 X1178 | 652 x728 x1198 |
| Weight (kg) | 60 | 60 | 70 | 70 | 135 |
| ' Supplyvoltage | 230V 5CHZ | 230V 5CHZ | 230V 5CHZ | 230V 5CHZ | 230V 5CHZ |
| Operating temperatures (°C) | 5°-45° | 5°-45° | 5°-45° | 5°-45° | 5°-45° |
| Humidity | 10 – 90% R.H, not condensing | 10 – 90% R.H, not condensing | 10 – 90% R.H, not condensing | 10 – 90% R.H, not condensing | 10 – 90% R.H, not condensing |
Complete Valeo Support
Delivered on site with demonstration
12 months warranty & out of warranty offer
Technical hotline support
