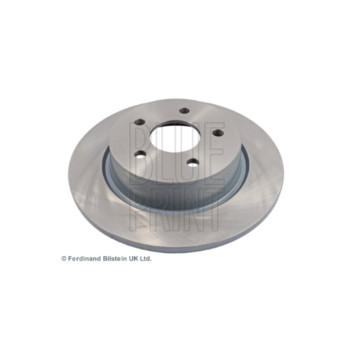

Blue Print ADF124312 - Brake Disc (Rear)
logo

Blue Print Brake Disc (Rear)

Product Code: ADF124312
Equivalent to the following products: 5050063041804
Available to Order

Not available for delivery

£39.00
inc VAT
We always recommend fitting discs in pairs for safety and comfort

Fitment Details

Description Brake Disc
Engine Code XRMC, T7MA, T7MD, T7MA, T8MA
BHP 118, 148, 177
Type Solid
Part Detail Mounting Bores:5
Size mm Centre Dia.:63.6;Height:50.8;Min. Thickness:9;Outer Dia.:280;P.C.D.:108;Thickness:11
Note Vehicle Equipment:for vehicles without electric parking brake
Fitment Detail rear axle

Fits the following vehicles:

  • Ford Kuga 1.5 EcoBoost 120 (2012-2020)
  • Ford C-MAX 2.0 TDCi 150 (2015-2019)
  • Ford Tourneo Connect 1.5 EcoBlue 100 (2013-2022)
  • Ford C-MAX 1.5 TDCi 105 (2015-2019)
  • Ford Tourneo Connect 1.0 EcoBoost 100 (2013-2022)
  • Ford C-MAX 1.6 EcoBoost 182 (2010-2016)
  • Ford Transit Connect 1.5 EcoBlue 120 (2013-)
  • Ford Transit Connect 1.6 TDCi 95 (2013-)
  • Ford C-MAX 2.0 TDCi 150 (2015-2019) Powershift
  • Ford C-MAX 2.0 TDCi 140 (2010-2016) Powershift
  • Ford C-MAX 1.6 TI-VCT 125 (2010-2016)
  • Ford C-MAX 1.0 EcoBoost 125 (2015-2019)
  • Ford C-MAX 1.6 TI-VCT 125 (2015-2019)
  • Ford Transit Connect 1.5 EcoBlue 75 (2013-)
  • Ford Kuga 2.0 TDCi 150 (2012-2020)
  • Ford Kuga 1.5 EcoBoost 182 (2012-2020)
  • Ford Transit Connect 1.0 EcoBoost 100 (2013-)
  • Ford Grand C-MAX 1.6 EcoBoost 150 (2010-2016)
  • Ford Tourneo Connect 1.5 TDCI 100 (2013-2022)
  • Ford Kuga 1.5 EcoBoost 150 (2012-2020)
  • Ford Transit Connect 1.6 TDCi 75 (2013-)
  • Ford Kuga 2.0 TDCi 150 (2012-2020) Powershift
  • Ford Transit Connect 1.5 TDCI 120 (2013-)
  • Ford C-MAX 1.0 EcoBoost 100 (2015-2019)
  • Ford C-MAX 1.0 EcoBoost 120 (2010-2016)
  • Ford Tourneo Connect 1.5 TDCI 120 (2013-2022)
  • Ford C-MAX 2.0 TDCi 140 (2010-2016)
  • Ford C-MAX 1.5 EcoBoost 150 (2015-2019)
  • Ford Grand C-MAX 2.0 TDCi 163 (2010-2016) Powershift
  • Ford Kuga 2.0 TDCi 180 (2012-2020) Powershift
  • Ford C-MAX 2.0 TDCi 163 (2010-2016) Powershift
  • Ford Grand C-MAX 1.0 EcoBoost 100 (2010-2016)
  • Ford Grand C-MAX 1.0 EcoBoost 120 (2010-2016)
  • Ford Grand C-MAX 2.0 TDCi 140 (2010-2016)
  • Ford Kuga 2.0 TDCi 180 (2012-2020)
  • Ford Kuga 2.0 TDCi 120 (2012-2020) Powershift
  • Ford Tourneo Connect 1.6 TDCi 95 (2013-2022)
  • Ford Tourneo Connect 1.5 EcoBlue 120 (2013-2022)
  • Ford Grand C-MAX 2.0 TDCi 140 (2010-2016) Powershift
  • Ford Kuga 2.0 TDCi 140 (2012-2020)
  • Ford Tourneo Connect 1.6 TDCi 115 (2013-2022)
  • Ford Kuga 2.0 TDCi 163 (2008-2013)
  • Ford Kuga 1.6 EcoBoost 150 (2012-2020)
  • Ford C-MAX 2.0 TDCi 163 (2010-2016)
  • Ford Transit Connect 1.5 EcoBlue 100 (2013-)
  • Ford Transit Connect Kombi 1.5 TDCI 100 (2013-)
  • Ford Kuga 1.6 EcoBoost 180 (2012-2020)
  • Ford C-MAX 1.5 TDCi 120 (2015-2019)
  • Ford Transit Connect Kombi 1.5 TDCI 120 (2013-)
  • Ford Kuga 1.5 TDCi 120 (2012-2020)
  • Ford C-MAX 1.6 TI-VCT 105 (2010-2016)
  • Ford C-MAX 1.6 EcoBoost 150 (2010-2016)
  • Ford Grand C-MAX 1.6 TI-VCT 125 (2010-2016)
  • Ford C-MAX 1.5 TDCi 120 (2015-2019) Powershift
  • Ford Kuga 2.0 TDCi 163 (2012-2020)
  • Ford Transit Connect 1.5 TDCI 100 (2013-)
  • Ford Grand C-MAX 1.6 EcoBoost 182 (2010-2016)
  • Ford Tourneo Connect 1.6 EcoBoost 150 (2013-2022)
  • Ford Grand C-MAX 1.6 TDCi 115 (2010-2016)
  • Ford C-MAX 1.6 TDCi 115 (2010-2016)
  • Ford Kuga 2.0 TDCi 163 (2012-2020) Powershift
  • Ford Transit Connect 1.5 TDCI 75 (2013-)
  • Ford C-MAX 1.0 EcoBoost 100 (2010-2016)
  • Ford Kuga 2.0 TDCi 140 (2012-2020) Powershift
  • Ford Transit Connect 1.6 TDCi 115 (2013-)
  • Ford Grand C-MAX 2.0 TDCi 163 (2010-2016)
